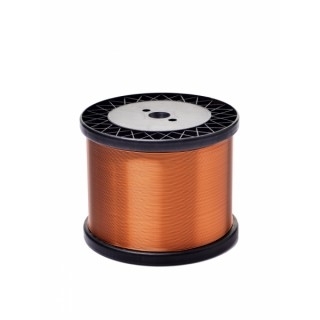

Product Card ERALLOY-TIN 180
|
round enamelled winding wire of CuSn03 Alloy Solderable, Class 180 |
|
|
|
|
Properties: |
Product name: |
|
|
|
- Directly solderable |
ERALLOY-TIN - Gr 1 / Single | ||
|
- Good Bending Performance |
ERALLOY-TIN - Gr 2 / Heavy |
|
|
|
- Tin 0.15-0.55 %wt |
|
|
|
| High Tensile Strength |
|
|
|
|
Field of application: |
Specifications: |
|
|
|
- Equipment Construction |
IEC 60317-51 |
|
|
|
- Automotive and Aerospace Industry |
MW82-C |
|
|
|
- Resistors Applications |
|
|
|
|
- Heating Applications |
|
|
|
|
|
|
|
|
|
|
|
||
|
Certifications: |
Dimension range: |
IEC |
|
|
IATF 16949 |
ERALLOY-TIN Gr 1 |
0,05 ≤ Ø ≤ 0,12 mm | |
|
ISO 9001,ISO 14001,OHSAS 18001 |
ERALLOY-TIN Gr 2 | 0,05 ≤ Ø ≤ 0,12 mm | |
|
RoHS,REACH |
|
|
|
|
Class: 180 |
Dimension range: |
NEMA |
|
|
Temperature index ≥ 180 °C |
ERALLOY-TIN Single |
44 ≤ Ø ≤ 36 AWG |
|
|
Heat shock: ≥ 180 °C |
ERALLOY-TIN Heavy |
44 ≤ Ø ≤ 36 AWG |
|
|
Conductor material: |
|
|
|
| CuSn03 according to C18835 |
|
|
|
|
Insulation: |
Shelf life: |
|
|
|
Basecoat: Polyurethane |
6 years, under normal ambient conditions |
|
|
|
Main characteristics |
Test method |
Acceptance criteria |
Test values for a ERSOL 180 sample (1,00 mm, Gr2) |
|
Thermal properties |
IEC 60851 - 6.3 |
≥ 200 °C |
≥ 200 °C |
|
Heat shock |
|||
|
Cut-through |
IEC 60851 - 6.4 |
≥ 230°C |
> 230 °C |
|
Temperature index |
IEC 60172 |
≥ 180 °C1) |
≥ 180 °C1) |
|
Chemical properties Solderability |
IEC 60851-4.5 |
390 °C |
Max.1 sec |
| Chemical Composition | C18835 | %0.15 - %0.55wt Sn |
%0.26wt Sn |
|
Electrical properties |
C18835 |
0,021 Ωmm²/m |
0,021 Ωmm²/m |
|
Conductor resistance |
|||
|
Conductivity |
1/R |
47 m/(Ωmm²) | 47 m/(Ωmm²) |
|
Breakdown voltage |
IEC 60851 - 5.4 |
IEC 60317-0-12) |
>875 V |
|
Mechanical properties |
IEC 60851-3.3 |
IEC 60317-0-12) |
36% |
|
Elongation |
|||
| Tensile Strenght |
IEC 60851-3.3 |
IEC 60317-0-12) |
>350 N/mm² |
| Yield Strenght |
IEC 60851-3.3 |
IEC 60317-0-1 2) | >120 N/mm² |
|
1. According to supplier certificate |
|
Values above are for information only. All values noted are typical and can vary between lots and dimensions. |
|
|
2. Values depend on dimension and grade |
|
||
|
3. Up to an including 1,60 mm |
|
||
|
4. Over 1,60 mm |
|
||
| 5. Up to an including 1,00 mm | |||
| 6. Up to an including 1,00 mm | |||
| 7. Revolutions x nominal dimension | |||
The technical data included is up to date at the time of printing.
Erikoğlu reserve the right to make any amendments deemed necessary
