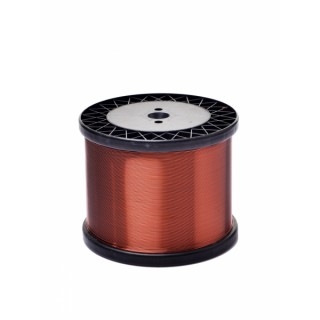

Product Card ERTHERM 200
|
round enamelled copper wire , winding wire , magnet wire, class 180 |
|
|
|
Properties: |
Product name: |
|
|
- Heat resistant |
ERTHERM 200 - Gr 1 / Single |
|
|
- Suitable for winding in high speed machines |
ERTHERM 200 - Gr 2 / Heavy |
|
|
- Tolerates mechanical stress during winding |
ERTHERM 200 - Gr 3 / Triple |
|
|
- Good resistance to typical solvent |
|
|
|
Field of application: |
Specifications: |
|
|
- Electric motors |
IEC 60317-8 |
|
|
- Transformers |
MW74-C |
|
|
- All kind of coils |
|
|
|
- Ballasts |
|
|
|
- Electric devices |
|
|
|
-Oil-immersed transformers |
|
|
|
UL approval: |
Dimension range: |
IEC |
|
Approved: ERTHERM 220 |
ERTHERM 200 Gr 1 |
0,10 ≤ Ø ≤ 4,00 mm |
|
UL-file no: E304215 |
ERTHERM 200 Gr 2
|
0,10 ≤ Ø ≤ 4,00 mm |
|
|
ERTHERM 200 Gr 3 |
0,10 ≤ Ø ≤ 4,00 mm |
|
Certifications: |
Dimension range: |
NEMA |
|
IATF 16949 |
ERTHERM 200 Single |
38 ≤ Ø ≤ 6 AWG |
|
ISO 9001,ISO 14001,OHSAS 18001 |
ERTHERM 200 Heavy |
38 ≤ Ø ≤ 6 AWG |
|
RoHS,REACH |
ERTHERM 200 Triple |
38 ≤ Ø ≤ 6 AWG |
|
Class: 180 |
|
|
|
Temperature index ≥ 180 °C |
|
|
|
Heat shock: ≥ 200 °C |
|
|
|
Conductor material: |
|
|
|
Cu according to EN 1977/ASTM B49 |
|
|
|
Insulation: |
Shelf life: |
|
|
Basecoat: THEIC- Polyester(-imide) |
6 years, under normal ambient conditions |
|
|
Main characteristics |
Test method |
Acceptance criteria |
Test values for a ERTHERM 200 sample (1,00 mm, Gr2) |
||
|
Thermal properties |
IEC 60851 - 6.3 |
≥ 200 °C |
≥ 200 °C |
||
|
Heat shock |
|||||
|
Cut-through |
IEC 60851 - 6.4
|
≥ 265°C
|
> 275 °C |
||
|
Temperature index |
IEC 60172
|
≥ 180 °C1)
|
≥ 180 °C1) |
||
|
Chemical properties Solderability |
IEC 60851-4.5
|
Not solderable |
- |
||
|
Resistance to Transformer oil |
IEC 60851-4.6
|
IEC 60317-0-1 |
OK |
||
|
Electrical properties |
IEC 60851 - 5.3 |
0,01709 Ωmm²/m |
0,01709 Ωmm²/m |
||
|
Conductor resistance |
|||||
|
Conductivity |
1/R |
> 58 m/(Ωmm²) |
> 58 m/(Ωmm²) |
||
|
Breakdown voltage |
IEC 60851 - 5.4 |
IEC 60317-0-12) |
10,0 kV |
||
|
Mechanical properties |
IEC 60851-3.3 |
IEC 60317-0-12) |
37% |
||
|
Elongation |
|||||
|
Springiness |
IEC 60851-3.4 |
Springiness3) |
IEC 60317-0-12) |
38° |
|
|
Springback4) |
≤ 5° |
- |
|||
|
Flexibility |
IEC 60851-3.5 |
Mandrel wind.3) |
0% elongation + 1xØ |
15 % + 1xØ |
|
|
Stretching4) |
min 32% |
- |
|||
|
Adherence |
IEC 60851-3.5 |
Jerktest5) |
No loss of adhesion |
OK |
|
|
Peeltest6) |
min. 1107) |
- |
|||
|
1. According to supplier certificate |
|
|
|
Values above are for information only. All values noted are typical and can vary between lots and dimensions. |
|
|
2. Values depend on dimension and grade |
|
|
|||
|
3. Up to an including 1,60 mm |
|
|
|||
|
4. Over 1,60 mm |
|
|
|||
- Up to an including 1,00 mm
- Over 1,00 mm
- Revolutions x nominal dimension
The technical data included is up to date at the time of printing.
Erikoğlu reserve the right to make any amendments deemed necessary
