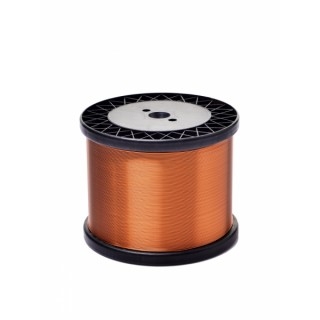

ERSOL 180 N
round enamelled copper wire , winding wire , magnet wire,class 180 |
|
||
Properties: |
Product name: |
|
|
- Directly solderable |
ERSOL 180 N - Gr 1 / Single |
|
|
- Very short soldertime |
ERSOL 180 N - Gr 2 / Heavy |
|
|
- Suitable in high speed winding machines |
|
|
|
- Excellent mechanical resistance |
|
|
|
Field of application: |
Specifications: |
|
|
- Solenoid coils |
IEC 60317-55 |
|
|
- Small motors and tranformers |
MW83-C |
|
|
- Reyals |
|
|
|
- Automotive components |
|
|
|
- Electronic devives&meters |
|
|
|
Certifications: |
Dimension range: |
IEC |
|
IATF 16949 |
ERSOL 180 N Gr 1
|
0,05 ≤ Ø ≤ 2,00 mm |
|
ISO 9001,ISO 14001,OHSAS 18001 |
ERSOL 180 N Gr 2 |
0,05 ≤ Ø ≤ 2,00 mm |
|
RoHS,REACH |
|
|
|
Class: 180 |
Dimension range: |
NEMA |
|
Temperature index ≥ 180 °C |
ERSOL 180 N Single |
44 ≤ Ø ≤ 12 AWG |
|
Heat shock: ≥ 200 °C |
ERSOL 180 N Heavy |
44 ≤ Ø ≤ 12 AWG |
|
Conductor material: |
|
|
|
Cu according to EN 1977/ASTM B49 |
|
|
|
Insulation: |
Shelf life: |
|
|
Basecoat: Polyurethane |
6 years, under normal ambient conditions |
|
Main characteristics |
Test method |
Acceptance criteria |
Test values for a ERSOL 180 N sample (1,00 mm, Gr2) |
|
Thermal properties |
IEC 60851 - 6.3 |
≥ 200 °C |
≥ 200 °C |
|
Heat shock |
||||
Cut-through |
IEC 60851 - 6.4
|
≥ 230°C |
> 240 °C |
|
Temperature index |
IEC 60172 |
≥ 180 °C1) |
≥ 180 °C1) |
|
Chemical properties Solderability |
IEC 60851-4.5 |
390 °C |
Max.3 sec |
|
Resistance to Transformer oil |
IEC 60851-4.6 |
Not applicable |
- |
|
Electrical properties |
IEC 60851 - 5.3 |
0,01709 Ωmm²/m |
0,01709 Ωmm²/m |
|
Conductor resistance |
||||
Conductivity |
1/R |
> 58 m/(Ωmm²) |
> 58 m/(Ωmm²) |
|
Breakdown voltage |
IEC 60851 - 5.4
|
IEC 60317-0-12) |
6,0 kV |
|
Mechanical properties |
IEC 60851-3.3 |
IEC 60317-0-12) |
36% |
|
Elongation |
||||
Springiness |
IEC 60851-3.4 |
Springiness3) |
IEC 60317-0-12) |
40° |
Springback4) |
≤ 5° |
- |
||
Flexibility |
IEC 60851-3.5 |
Mandrel wind.3) |
1xØ |
1xØ |
Stretching4) |
min 32% |
- |
||
|
IEC 60851-3.5 |
Jerktest5) |
No loss of adhesion |
OK |
Peeltest6) |
min. 757) |
- |
||
1. According to supplier certificate |
|
|
Values above are for information only. All values noted are typical and can vary between lots and dimensions. |
|
2. Values depend on dimension and grade |
|
|
||
3. Up to an including 1,60 mm |
|
|
||
4. Over 1,60 mm |
|
|
|
- Up to an including 1,00 mm
- Over 1,00 mm
- Revolutions x nominal dimension
The technical data included is up to date at the time of printing.
Erikoğlu reserve the right to make any amendments deemed necessary
