ERSOL 155 N

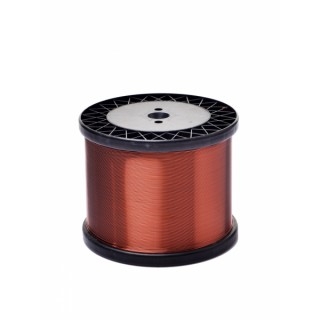

Round enamelled copper wire , winding wire , magnet wire,class 155

Main characteristics	Test method		Acceptance criteria	test values for a ERSOL 155 N sample (1,00 mm, Gr2)
Thermal properties	IEC 60851 - 6.3		≥ 175 °C	≥ 175 °C
Heat shock
Cut-through	IEC 60851 - 6.4		≥ 200°C	> 210 °C
Temperature index	IEC 60172		≥ 155 °C1)	≥ 155 °C1)
Chemical properties Solderability	IEC 60851-4.5		390 °C	Max.3 sec
Resistance to Transformer oil	IEC 60851-4.6		Not applicable	-
Electrical properties	IEC 60851 - 5.3		0,01709 Ωmm²/m	0,01709 Ωmm²/m
Conductor resistance
Conductivity	1/R		> 58 m/(Ωmm²)	> 58 m/(Ωmm²)
Breakdown voltage	IEC 60851 - 5.4		IEC 60317-0-12)	6,0 kV
Mechanical properties	IEC 60851-3.3		IEC 60317-0-12)	37%
Elongation
Springiness	IEC 60851-3.4	Springiness3)	IEC 60317-0-12)	40°
		Springback4)	≤ 5°	-
Flexibility	IEC 60851-3.5	Mandrel wind.3)	1xØ	1xØ
		Stretching4)	min 32%	-
	IEC 60851-3.5	Jerktest5)	No loss of adhesion	OK
		Peeltest6)	min. 757)	-
1. According to supplier certificate				Values above are for information only. All values noted are typical and can vary between lots and dimensions.
2. Values depend on dimension and grade
3. Up to an including 1,60 mm
4. Over 1,60 mm

The technical data included is up to date at the time of printing.

Erikoğlu reserve the right to make any amendments deemed necessary


Properties:	Product name:
- Directly solderable	ERSOL 155 N - Gr 1 / Single
- Very short soldertime	ERSOL 155 N - Gr 2 / Heavy
- Suitable in high speed winding machines
- Very good mechanical resistance
Field of application:	Specifications:
- Small motors and tranformers	IEC 60317-21 MW80-C
- Selenoid coils
-Relays
-Automotive components
-Electronic devices&meters
Certifications:	Dimension range:	IEC
IATF 16949	ERSOL 155 N Gr 1	0,05 ≤ Ø ≤ 2,00 mm
ISO 9001,ISO 14001,OHSAS 18001	ERSOL 155 N Gr 2	0,05 ≤ Ø ≤ 2,00 mm
RoHS,REACH
Class: 155	Dimension range :	NEMA
Temperature index ≥ 155 °C	ERSOL 155 N Single	44 ≤ Ø ≤ 12 AWG
Heat shock: ≥ 175 °C	ERSOL 155 N Heavy	44 ≤ Ø ≤ 12 AWG
Conductor material:	Shelf life:
Cu according to EN 1977/ASTM B49	6 years, under normal ambient conditions
Insulation:
Basecoat: Polyurethane Overcoat: Polyamide

Main characteristics	Test method		Acceptance criteria	test values for a ERSOL 155 N sample (1,00 mm, Gr2)
Thermal properties	IEC 60851 - 6.3		≥ 175 °C	≥ 175 °C
Heat shock
Cut-through	IEC 60851 - 6.4		≥ 200°C	> 210 °C
Temperature index	IEC 60172		≥ 155 °C1)	≥ 155 °C1)
Chemical properties Solderability	IEC 60851-4.5		390 °C	Max.3 sec
Resistance to Transformer oil	IEC 60851-4.6		Not applicable	-
Electrical properties	IEC 60851 - 5.3		0,01709 Ωmm²/m	0,01709 Ωmm²/m
Conductor resistance
Conductivity	1/R		> 58 m/(Ωmm²)	> 58 m/(Ωmm²)
Breakdown voltage	IEC 60851 - 5.4		IEC 60317-0-12)	6,0 kV
Mechanical properties	IEC 60851-3.3		IEC 60317-0-12)	37%
Elongation
Springiness	IEC 60851-3.4	Springiness3)	IEC 60317-0-12)	40°
		Springback4)	≤ 5°	-
Flexibility	IEC 60851-3.5	Mandrel wind.3)	1xØ	1xØ
		Stretching4)	min 32%	-
	IEC 60851-3.5	Jerktest5)	No loss of adhesion	OK
		Peeltest6)	min. 757)	-
1. According to supplier certificate				Values above are for information only. All values noted are typical and can vary between lots and dimensions.
2. Values depend on dimension and grade
3. Up to an including 1,60 mm
4. Over 1,60 mm

The technical data included is up to date at the time of printing.

Erikoğlu reserve the right to make any amendments deemed necessary
