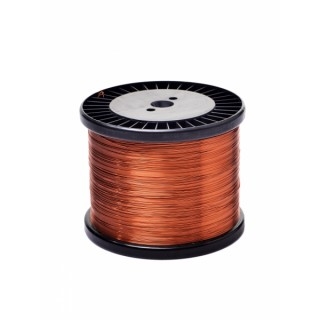

Product Card ERCORONA-200
|
round enamelled copper wire , winding wire , magnet wire, class 200 |
|
|||
|
Properties: |
Product name: |
|
||
|
- Excellent corona effect resistance |
ERCORONA-200 - Gr 1 / Single |
|||
|
- High cut-through temperature |
ERCORONA-200 - Gr 2 / Heavy |
|||
|
- Very good heat resistance |
ERCORONA-200 - Gr 3 / Triple |
|||
|
Field of application: |
Specifications: |
|
||
|
- Inverter fed motors |
IEC 60317-13 |
|
||
|
- Transformers |
MW35-C |
|
||
|
- Power bridges |
|
|
||
|
- Electric motors |
|
|
||
|
Dimension range: |
IEC |
|||
|
ERCORONA-200 Gr 1 |
0,10 ≤ Ø ≤ 4,00 mm |
|||
|
ERCORONA-200 Gr 2 |
0,10 ≤ Ø ≤ 4,00 mm |
|||
|
ERCORONA-200 Gr 3 |
0,10 ≤ Ø ≤ 4,00 mm |
|||
|
Certifications: |
Dimension range: |
NEMA |
||
|
IATF 16949 |
ERCORONA-200 Single |
38 ≤ Ø ≤ 6 AWG |
||
|
ISO 9001,ISO 14001,OHSAS 18001 |
ERCORONA-200 Heavy |
38 ≤ Ø ≤ 6 AWG |
||
|
RoHS,REACH |
ERCORONA-200 Triple |
38 ≤ Ø ≤ 6 AWG |
||
|
Class: 200 |
|
|
||
|
Temperature index ≥ 200 °C |
|
|||
|
Heat shock: ≥ 220 °C |
|
|
||
|
Conductor material: |
|
|
||
|
Cu according to EN 1977/ASTM B49 |
|
|
||
|
Insulation: |
Shelf life: |
|
||
|
Basecoat: THEIC-modified Polyester(-imide) |
6 years, under normal ambient conditions |
|||
|
Overcoat: Polyamide-imide |
|
|||
|
Main characteristics |
Test method |
Acceptance criteria |
Test values for a ERCORONA-200 sample (1,00 mm, Gr2) |
||
|
Thermal properties |
IEC 60851 - 6.3 |
≥ 220 °C |
≥ 220 °C |
||
|
Heat shock |
|||||
|
Cut-through |
IEC 60851 - 6.4
|
≥ 320°C |
> 320 °C |
||
|
Temperature index |
IEC 60172
|
≥ 200 °C1) |
≥ 200 °C1) |
||
|
Chemical properties Solderability |
IEC 60851-4.5 |
Not solderable |
- |
||
|
Resistance to Transformer oil |
IEC 60851-4.6 |
IEC 60317-0-1 |
OK |
||
|
Electrical properties |
IEC 60851 - 5.3 |
0,01709 Ωmm²/m |
0,01709 Ωmm²/m |
||
|
Conductor resistance |
|||||
|
Conductivity |
1/R |
> 58 m/(Ωmm²) |
> 58 m/(Ωmm²) |
||
|
Breakdown voltage |
IEC 60851 - 5.4 |
IEC 60317-0-12) |
10,0 kV |
||
|
Mechanical properties |
IEC 60851-3.3 |
IEC 60317-0-12) |
37% |
||
|
Elongation |
|||||
|
Springiness |
IEC 60851-3.4 |
Springiness3) |
IEC 60317-0-12) |
38° |
|
|
Springback4) |
≤ 5° |
- |
|||
|
Flexibility |
IEC 60851-3.5 |
Mandrel wind.3) |
0% elongation + 1xØ |
1xØ |
|
|
Stretching4) |
min 32% |
- |
|||
|
Adherence |
IEC 60851-3.5 |
Jerktest5) |
No loss of adhesion |
OK |
|
|
Peeltest6) |
min. 1107) |
- |
|||
|
1. According to supplier certificate |
|
|
|
Values above are for information only. All values noted are typical and can vary between lots and dimensions. |
|
|
2. Values depend on dimension and grade |
|
|
|||
|
3. Up to an including 1,60 mm |
|
|
|||
|
4. Over 1,60 mm |
|
|
|||
- Up to an including 1,00 mm
- Over 1,00 mm
- Revolutions x nominal dimension
The technical data included is up to date at the time of printing. Erikoğlu reserve the right to make any amendments deemed necessary
