ERACETAL 120

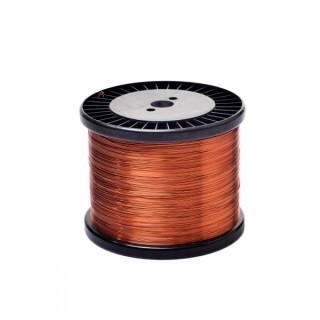

round enamelled copper wire , winding wire , magnet wire, class 120 |
||
Properties: |
Product name: |
|
- High chemical resistance |
ERACETAL 120 - Gr 1 / Single |
|
- Oil proof |
ERACETAL 120 - Gr 2 / Heavy |
|
Field of application: |
Specifications: |
|
- Oil filled transformers |
IEC 60317-12 |
|
- General motors |
MW15-C |
|
Dimension range: |
IEC |
|
ERACETAL 120 Gr 1 |
0,70 ≤ Ø ≤ 2,00 mm |
|
ERACETAL 120 Gr 2 |
0,70 ≤ Ø ≤ 2,00 mm |
|
Certifications: |
Dimension range: |
NEMA |
IATF 16949 |
ERACETAL 120 Single |
21 ≤ Ø ≤ 12 AWG |
ISO 9001,ISO 14001,OHSAS 18001 |
ERACETAL 120 Heavy |
21 ≤ Ø ≤ 12 AWG |
RoHS,REACH |
|
|
Class: 120 |
|
|
Temperature index ≥ 120 °C |
|
|
Heat shock: ≥ 155 °C |
|
|
Conductor material: |
Shelf life: |
|
Cu according to EN 1977/ASTM B49 |
6 years, under normal ambient conditions |
|
Insulation: |
|
|
Basecoat: Polyvinyl Acetal –Polyvinyl Formal |
|
Main characteristics |
Test method |
Acceptance criteria |
Test values for a ERACETAL 120 sample (1,00 mm, Gr2) |
||
Thermal properties |
IEC 60851 - 6.3 |
≥ 155 °C |
≥ 155 °C |
||
Heat shock |
|||||
Cut-through |
IEC 60851 - 6.4
|
≥ 170°C |
> 180 °C |
||
Temperature index |
IEC 60172 |
≥ 120 °C1) |
≥ 120 °C1) |
||
Chemical properties Solderability |
IEC 60851-4.5
|
Not solderable
|
- |
||
Resistance to Transformer oil |
IEC 60851-4.6 |
IEC 60317-0-1 |
OK |
||
Electrical properties |
IEC 60851 - 5.3 |
0,01709 Ωmm²/m |
0,01709 Ωmm²/m |
||
Conductor resistance |
|||||
Conductivity |
1/R |
> 58 m/(Ωmm²) |
> 58 m/(Ωmm²)
|
||
Breakdown voltage |
IEC 60851 - 5.4 |
IEC 60317-0-12) |
9,0 kV |
||
Mechanical properties |
IEC 60851-3.3 |
IEC 60317-0-12) |
37% |
||
Elongation |
|||||
Springiness |
IEC 60851-3.4 |
Springiness3) |
IEC 60317-0-12) |
38° |
|
Springback4) |
≤ 5° |
- |
|||
Flexibility |
IEC 60851-3.5 |
Mandrel wind.3) |
0% elongation + 1xØ |
1xØ |
|
Stretching4) |
min 32% |
- |
|||
Adherence |
IEC 60851-3.5 |
Jerktest5) |
No loss of adhesion |
OK |
|
Peeltest6) |
min. 1107) |
- |
|||
1. According to supplier certificate |
|
|
|
Values above are for information only. All values noted are typical and can vary between lots and dimensions. |
|
2. Values depend on dimension and grade |
|
|
|||
3. Up to an including 1,60 mm |
|
|
|||
4. Over 1,60 mm |
|
|
- Up to an including 1,00 mm
- Over 1,00 mm
- Revolutions x nominal dimension
